2.4G 4-zone RF RGB(W) Remote, ML-RM-RGB(W)

Both remotes can control the LED lights up to four different zones.

1. Technical Parameters (Remote control)

1). Power supply: AAA battery * 2pcs

2). Cover material: ABS

We recommend using rechargeable batteries for the remote controls. For that reason, we don’t include the ordinary batteries. We hope you appreciate our environmental friendly choices and they do not cause you any inconvenience.

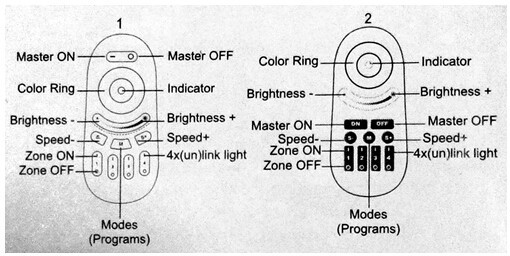

2. Function of Keys

3. Program List

1). RGBW Fade in fade out

2). Color flash

3). Color strobe and flash

4). Red color ramp up and flash

5). Green color ramp up and flash

6). Blue color ramp up and flash

7). Several colors fade into each other and then flash randomly.

8). Different color fade into each other

9). Just white color flashes up

Tips

1. Keep pressing the “Zone ON”, you get the static white color of this zone. Keep pressing the “Master ON”, all zones turns into white.

2. To control RGB(W) lights with individual zone, first press “Zone ON” in this zone, and then control by the color ring or brightness ring.

3. To control lights in all zones synchronously, press the “Master ON” first.

4. For RGB LED strip light, the white is mixed from Red, Green and Blue, so the white is not pure. For RGBW LED strip light, the white is pure white.

Linking new lights to the remote controls:

1. Choose which zone you want to assign the light(zone 1 to 4).

2. Switch off the main power supply of the light in the selected zone with the main switch or pull the plug from the socket.

3. Now switch on the light again and within 3 seconds shortly press one of the “Zone ON” buttons one time on the remote control.

4. When this link operation is successful, the light slowly blinks 3 times and off.

Unlinking the lights:

1. Use the remote to check which zone the light is already linked to.

2. Switch off the main power supply of the light in the selected zone with the main switch or pull the plug from the socket.

3. Now switch on the light again and within 3 seconds long press the “Zone ON” of the selected zone.

4. When the unlink is successful, the light quickly blinks 6 times on and off.

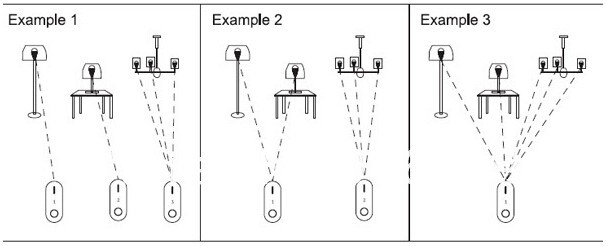

Grouping of several lights

You can add and endless numbers of lights to one zone on the 4 channel remote by linking the lights to different zones. You are completely flexible in creating different group combinations. Below are some grouping examples.
